A screenshot of the Health Panel is often the first thing that a Reach Robotics engineer will ask for when troubleshooting any issues with your units, so we recommend getting familiar with it early on.
You can access the Health Panel by going to Settings > Tools > Health, or by clicking a manipulator/controller in the Help panel (Status tab).
If the Help panel is not visible in the lower right corner of the screen, toggle it by clicking the question mark symbol in the top right corner.

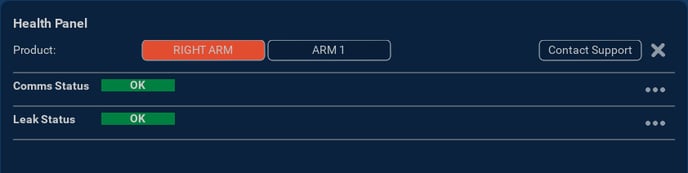

The Health Panel displays the comms status, leak status, and any hardware errors reported for each connected product (Figure 1).
Figure 1: Health panel

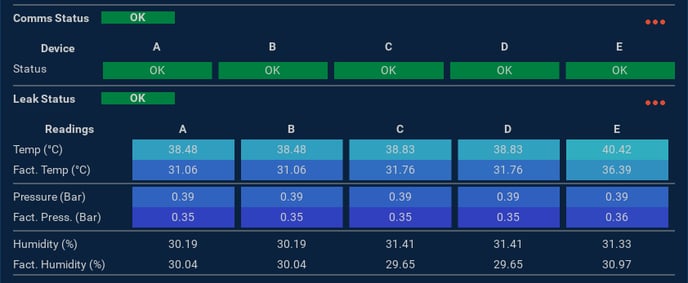

The comms and leak status are always shown. Click Expand [...] next to each section to see the climate information for each joint (Figure 2).
Figure 2: Expanded health panel showing comms and leak status

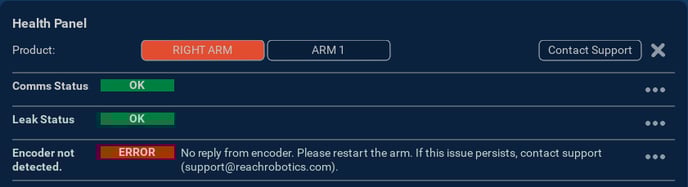

When an error is reported, it will appear underneath the comms and leak status (Figure 3).
Figure 3: Example error within the health panel

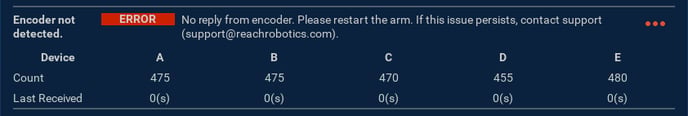

Expand the error to see details for each joint (Figure 4).
Figure 4: Expanded example error
